Lutrin

lutrin kit edit

Every colour, next to
the slide it repaints.

A kit is data: a theme, a few layouts, some fonts and logos. Editing one used to mean changing a hex, recompiling a deck and squinting at the result. The kit editor puts every token beside a specimen deck the real engine just compiled — the same compiler that runs lutrin build — and answers before you save anything.

lutrin kit edit brand-acme

A local server · binds 127.0.0.1 only · nothing leaves your machine

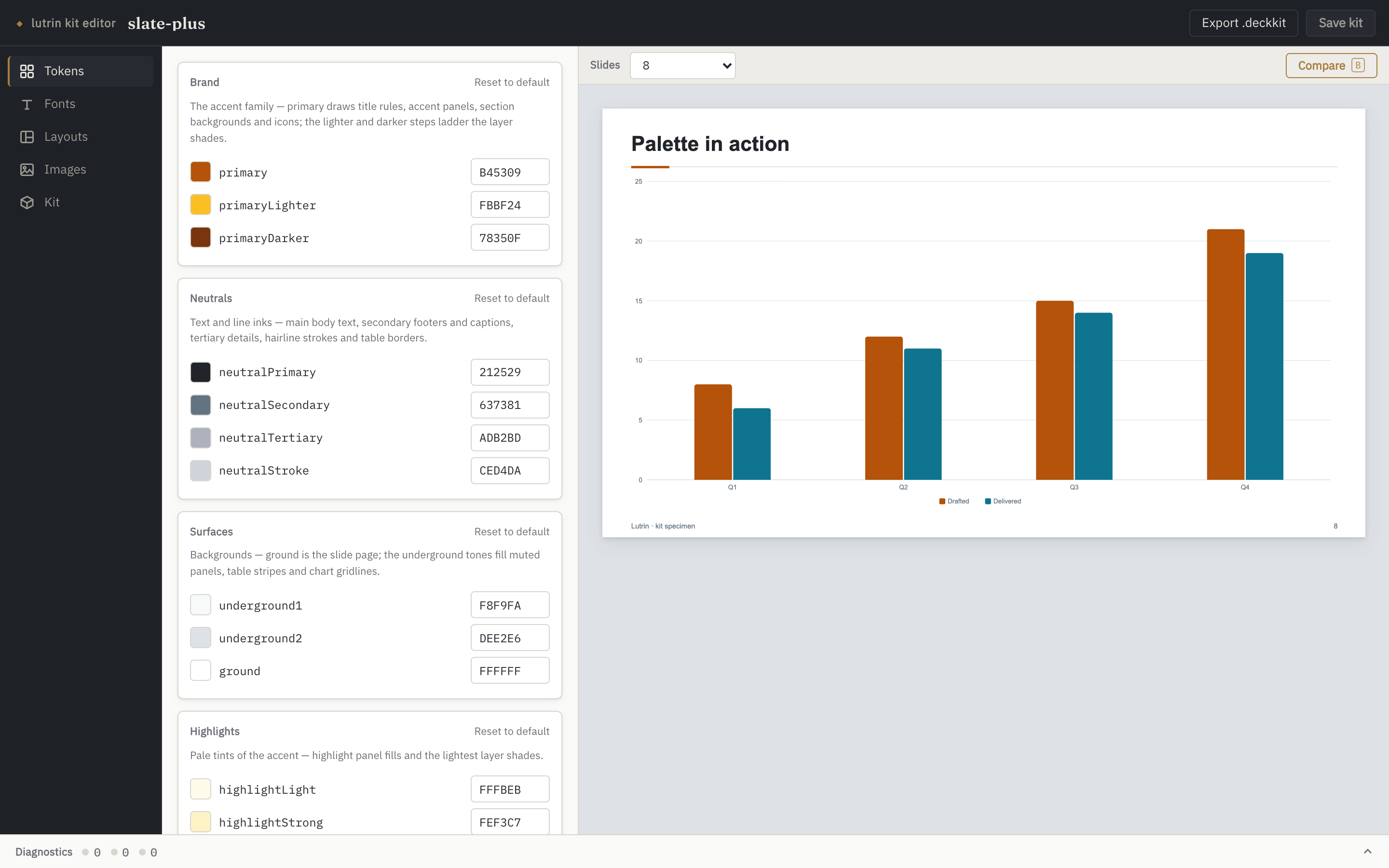

The kit editor: the Tokens panel on the left with the Brand, Neutrals and Surfaces colour groups; on the right, a compiled slide showing a bar chart in the kit's palette.
The Tokens panel and the compiled specimen. The chart's bars are the kit's chartColors, in order.

These are screenshots, not a live demo — the editor is a UI in front of a local Node server that compiles and writes files, and this page is static bytes on GitHub Pages. Every shot below is the real SPA, driven by scripts/kit-editor-shots.mjs, with previews compiled by the engine at HEAD. Nothing is mocked up or retouched. To use it, run the command above.

what it replaces

A kit is JSON. That was the problem.

Nothing about the format changed — a kit is still kit.json, theme.json, layouts/*.json and the files under fonts/ and images/. What changed is that you no longer have to hold the result in your head:

  • pick a hex, save the file, recompile a deck, squint
  • find out at delivery that the accent can't carry white text
  • ship a font name the .pptx can't honour
  • hand-write a layout definition the compiler then refuses
  • lose track of which image in images/ anything still uses

Every one of those is now answered while you are still deciding. The editor reads and writes the same files you always could, and everything it produces can still be written by hand.

five panels

One panel per thing a kit owns.

Colours, type, layouts, images, identity. The preview on the right is always the same specimen deck — metrics, splits, charts, callouts, tables, timelines: every surface a kit restyles, on one deck — compiled with your working state overlaid in memory.

Tokens

The theme's colours, grouped by the domains they actually serve — brand, neutrals, surfaces, highlights, semantic — plus the chart palette (ordered, and reorderable), the layer shades and the trend inks. Each row pairs a native colour picker with a hex field, and each group can be reset to the engine's default.

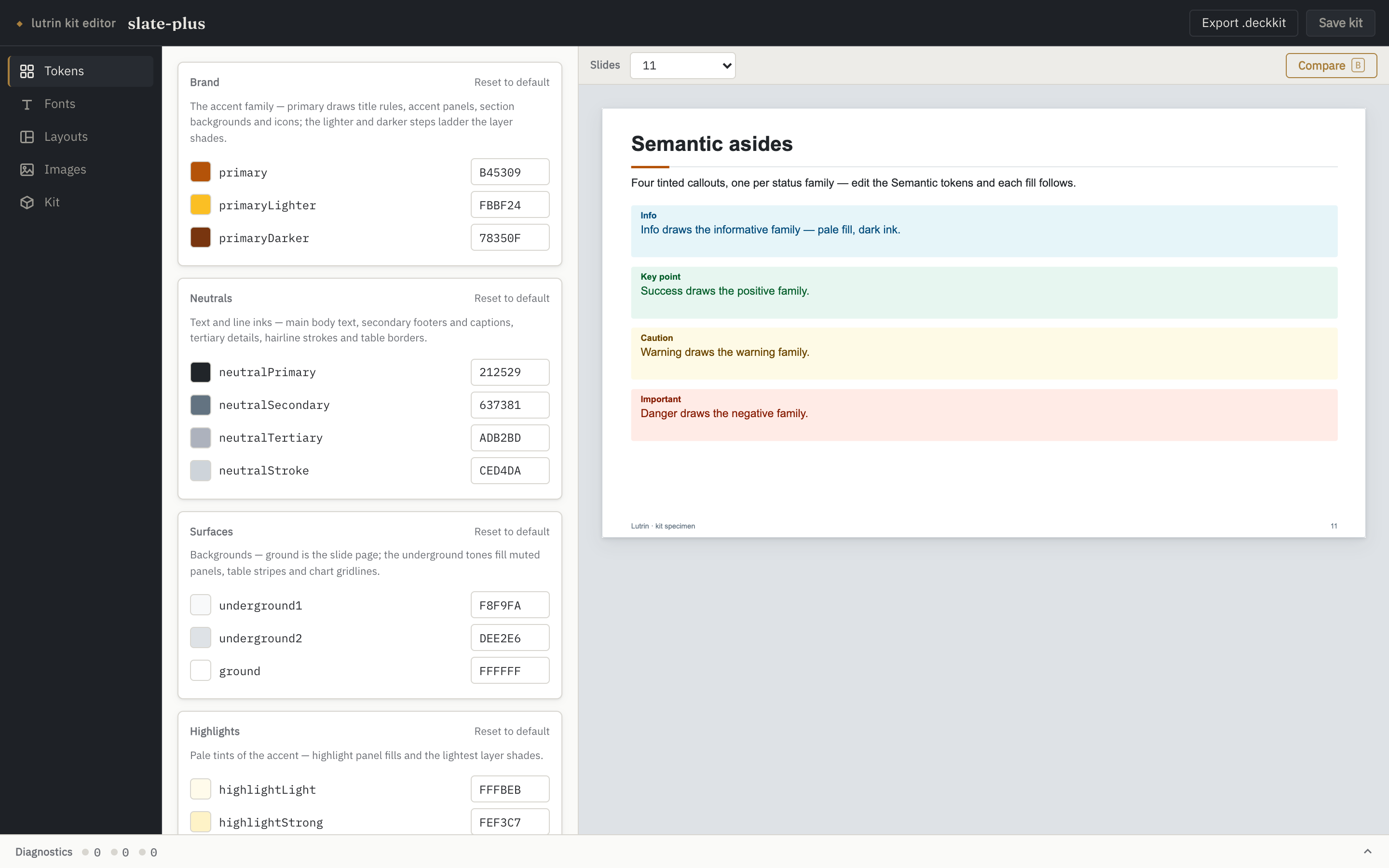

The Tokens panel beside a slide of four tinted callouts — info, success, warning and danger — each drawing its semantic colour family.
Edit a semantic token and all four callout fills follow.

Fonts

Two family choices — body and mono — and three embedded variants. Each variant is a .ttf plus a .woff2 twin of the same name: the .ttf is what gets embedded in the .pptx, the .woff2 is what the HTML output inlines. The panel shows the pair status of every declared variant and names a missing twin for what it is. Uploads are checked against their actual bytes, and the family name read from the .ttf itself is proposed when it disagrees with the theme.

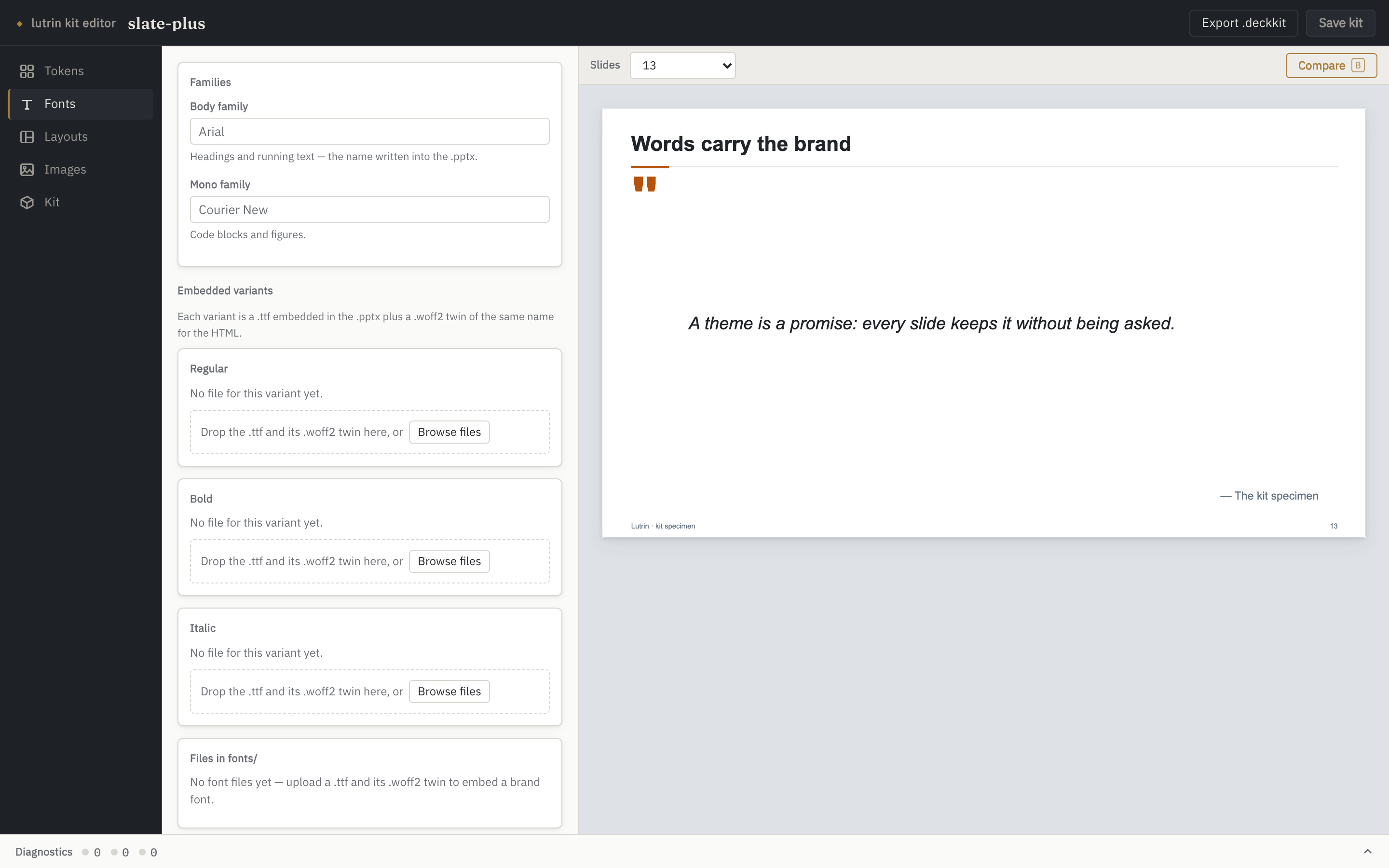

The Fonts panel: body and mono family fields, then three variant cards — regular, bold, italic — each with a drop zone for a .ttf and its .woff2 twin.
A family name with no embedded files is a promise the .pptx cannot keep — the panel says so rather than letting you find out on someone else's machine.

Layouts

A kit layout is a named preset of one of the engine's generators — a base plus the parameters that base publishes — never free geometry: the engine still owns placement, exactly as it does in a deck. "New layout" picks a base, then fills a form generated from that base's parameter schema, with its own live preview. Definitions are validated by the very code that loads kit layouts, so what the editor refuses is exactly what a compile would refuse.

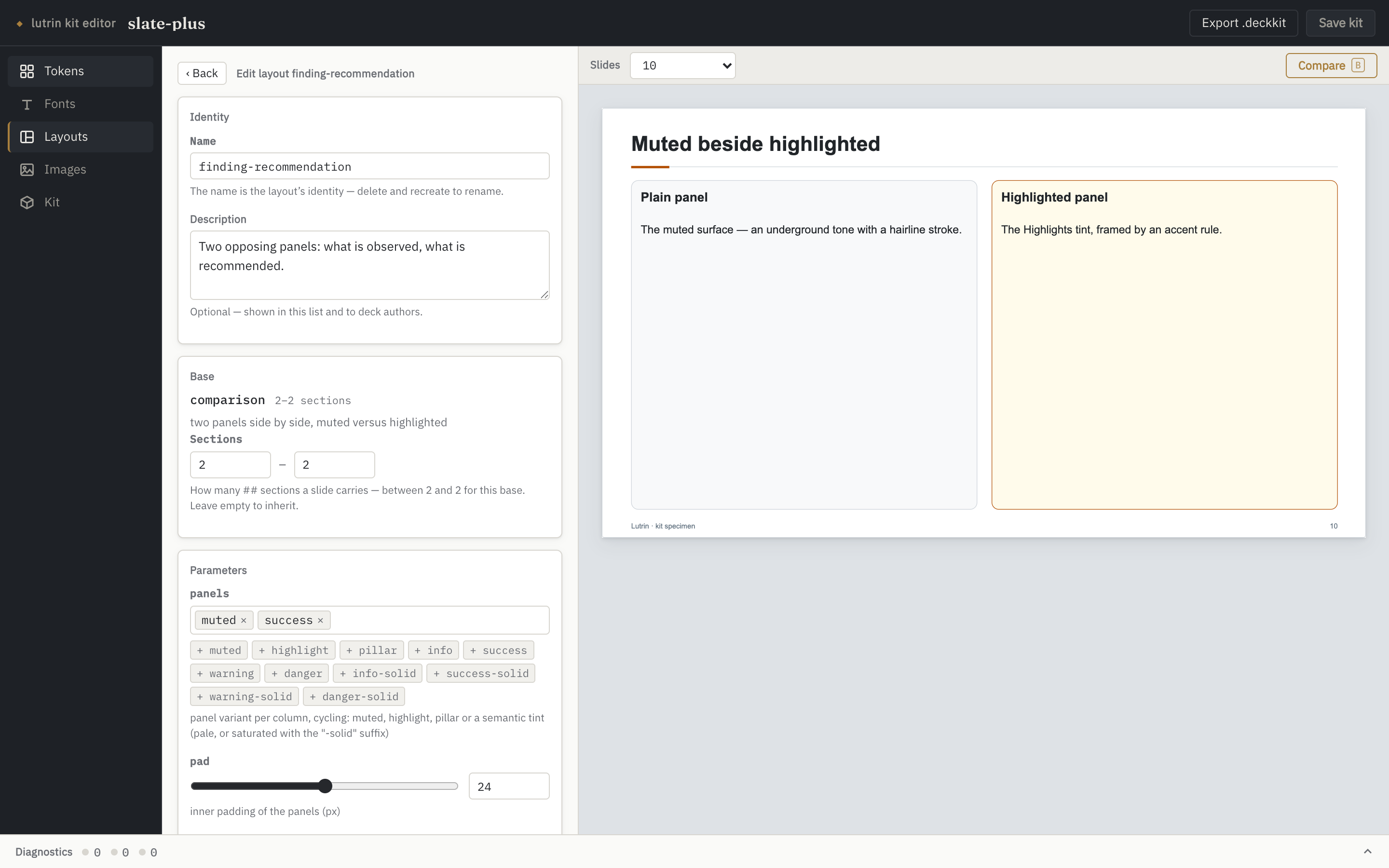

The layout editor for a layout named finding-recommendation: its identity, its base (comparison, 2 to 2 sections) and its parameters — panel tints as chips, padding on a slider.
Editing a layout: the base it presets, the sections it accepts, and the parameters that base publishes.

Images

Every image the theme names, plus the orphans sitting in images/ that nothing references yet. An upload ends in an alias written into the theme, and decks then place it with the usual roles — ![right](kit:hero-photo). Once resolved, a kit image behaves exactly like a local one: same placement by the engine, embedded in the .pptx, inlined in the HTML.

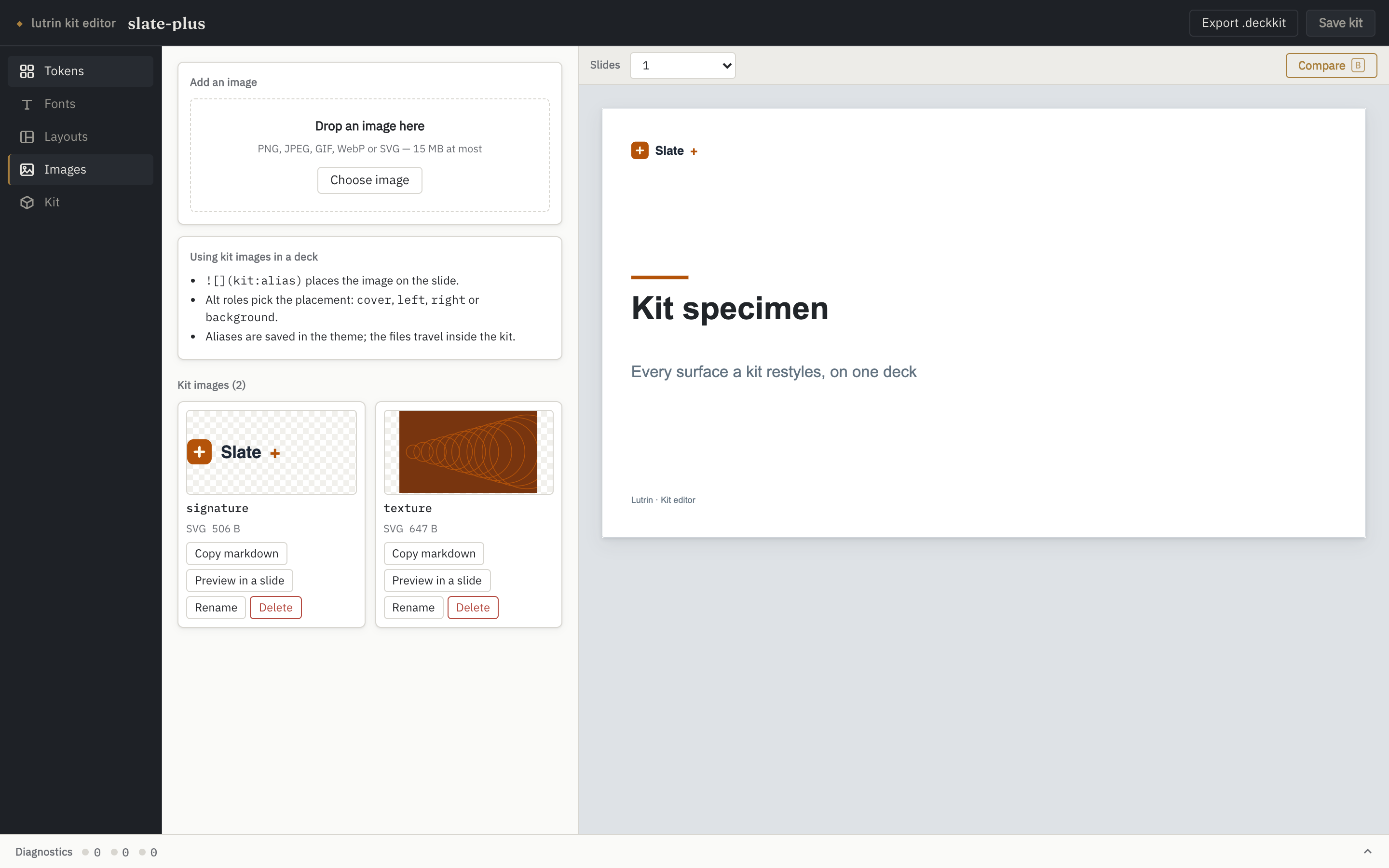

The Images panel: a drop zone, a reminder of the kit: alias syntax, and two image cards named signature and texture, each offering copy markdown, preview in a slide, rename and delete.
Each card copies the markdown that places it, previews it on a throwaway slide, or adopts an orphan under a fresh alias.

Kit

The manifest's display metadata — version, description, author, homepage — written straight to kit.json. The name is locked: it is the kit's install identity, so renaming is a new kit, not an edit. The four logo slots live here too, cover and section, each with a bitmap for .pptx exports and an SVG variant for HTML. Export .deckkit packs the same archive lutrin kit create produces and surfaces its SHA-256 — the digest kit install prints on the receiving side.

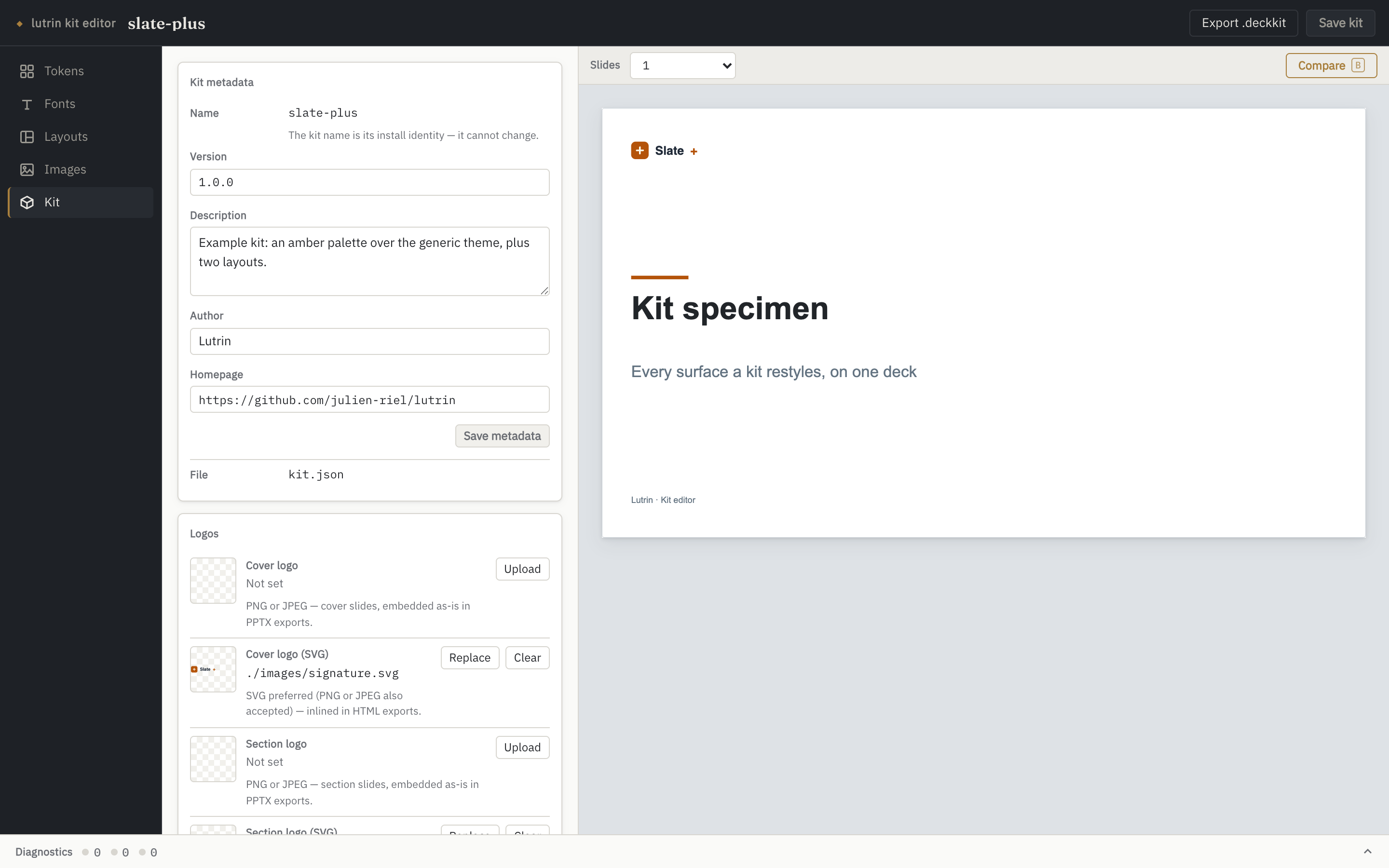

The Kit panel: name locked, version, description, author and homepage fields, then the four logo slots with upload and clear controls.
The identity a kit installs under, and the archive it travels as.

the point of the whole thing

It answers while you are still picking.

The engine checks the WCAG thresholds on every recompile — main text on the page, chart colours, layer inks, callout and trend inks. So a colour that breaks legibility does not wait for a review: the warning lands under the row that caused it, named, measured, with the pair it failed on.

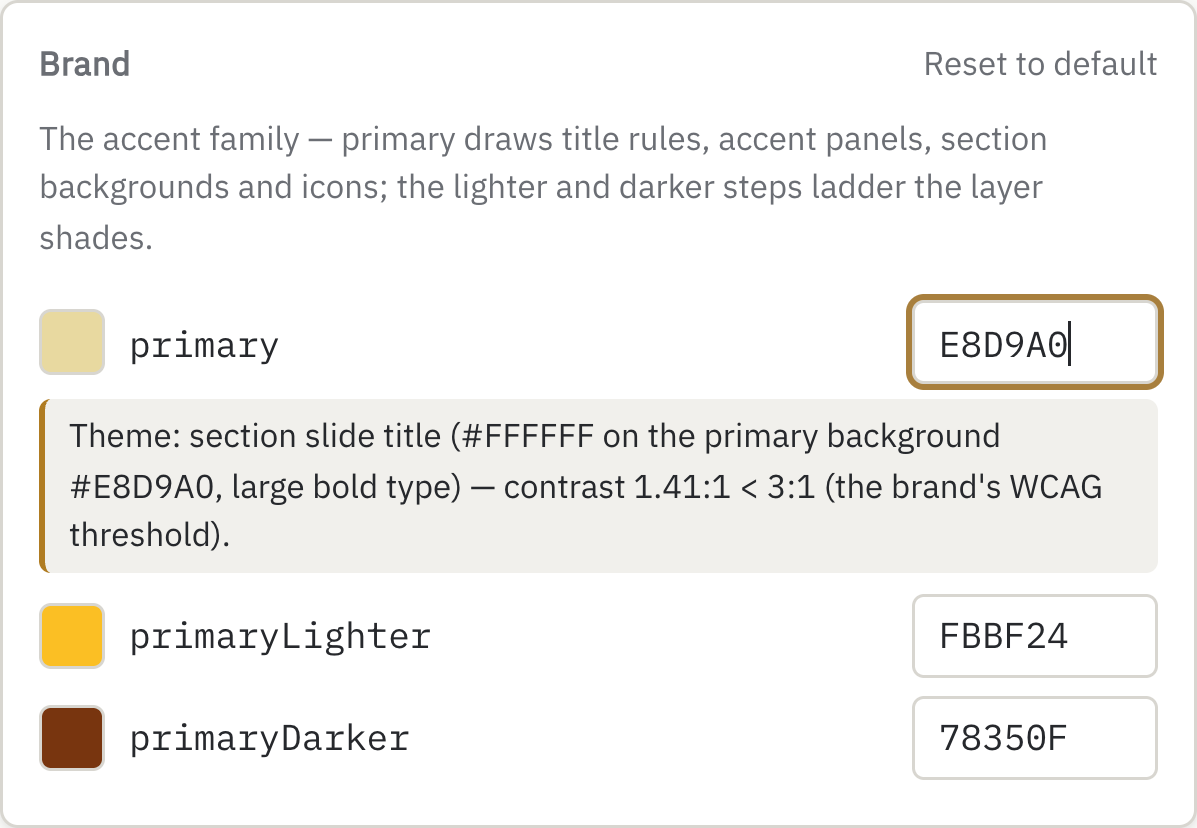

The Brand token group with primary set to a pale E8D9A0. Under the row, a warning: section slide title, white on the primary background, contrast 1.41:1 against a 3:1 threshold.
A pale accent, typed into primary. The engine measured it against the brand's own threshold and said which surface breaks.

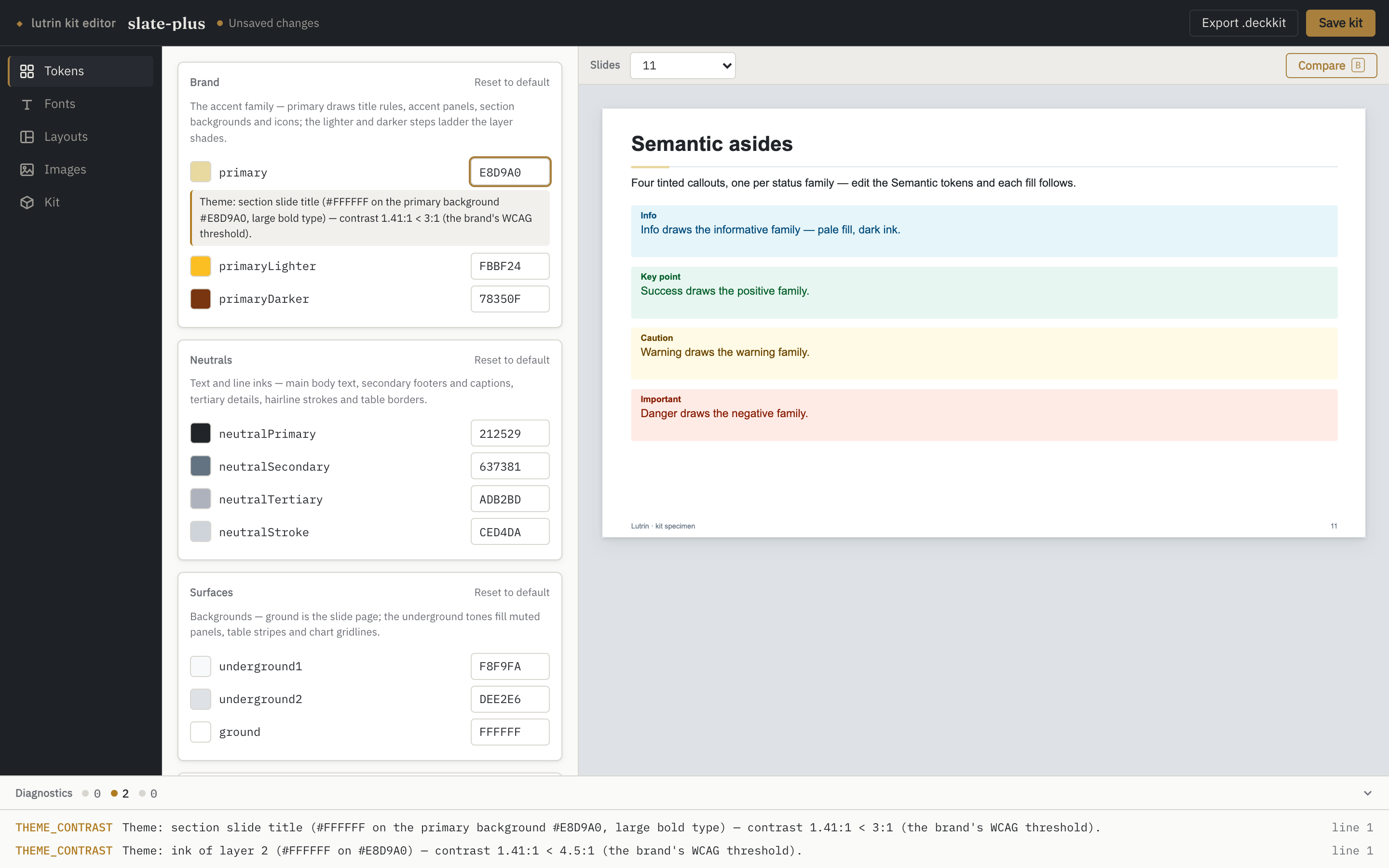

The whole editor with the pale accent applied: unsaved-changes marker in the top bar, the warning anchored under the primary row, and the diagnostics drawer open at the bottom listing two THEME_CONTRAST findings.
Same edit, whole window: two findings in the drawer, and Unsaved changes in the top bar — nothing has touched the disk.

Compare, press‑and‑hold

Hold the Compare button — or the B key — to see the last saved kit; release to come back to your edits. A before/after on the same slides.

Drafts, then a save

Theme and layout edits drive the preview immediately and touch nothing on disk until Save kit. File uploads are immediate: a binary either is in the kit or is not.

It watches the folder

An edit made outside — your text editor, a git checkout — reloads when nothing is at stake, and raises a conflict banner when you have unsaved work.

Clickable findings

The drawer counts errors, warnings and infos from the kit and from the last compile. Clicking one jumps to the panel it points at.

running it

One command, and a port that stays home.

lutrin kit edit brand-acme

A bare name designates an installed kit — the ones lutrin kit list shows. Pass a path (./brand-acme) to edit a directory in place.

lutrin kit edit ./brand-acme --create

Scaffolds a brand-new kit: kit.json, a theme.json copied from the engine's default theme — so you start from the exact tokens the engine uses, not an empty object — and the layouts/, images/ and fonts/ directories. It never overwrites an existing kit.

The default port is 4322, so a deck preview (4321) and a kit editor run side by side; a busy port moves to the next free one and says so.

It writes to your disk, so the server is built for that

  • binds 127.0.0.1 only, and refuses requests whose Host is not local — the DNS-rebinding guard it shares with lutrin preview;
  • refuses any mutating request whose Origin is not the editor's own, so a malicious page in the same browser cannot rewrite your kit through you;
  • every read and write is confined to the kit directory — an escaping path or symlink is a 404;
  • uploads are size-capped and checked against magic bytes: the extension promises a format, the first bytes must keep the promise;
  • kit files are served inert — a strict CSP, nothing executable — because a kit is data even when displayed.

It is a workbench, not a service: do not expose the port beyond the machine. The guards above assume a local browser.

the deal, again

Data, never code.

A kit stays what it always was. The editor reads and writes plain files, and an installed kit still runs nothing — that promise is what makes it safe to accept one from someone else. Everything the editor produces can be written by hand, and everything written by hand shows up in the editor.

Read the guide Back to Lutrin
